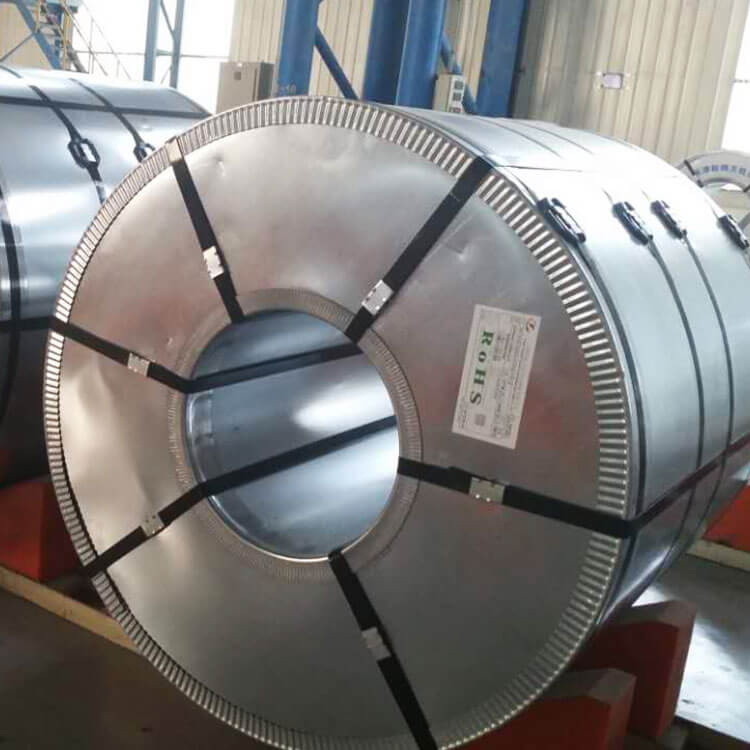

Galvalume Coil
Galvalume Coil
Galvalume Coil

Galvalume is same as galvanized steel. It takes 55% Al, 43% Zn and 2% Si to form the metallic coating. The corrosion resistance of galvalume is 3 times better than galvanized steel coils. With good corrosion resistance, heat resistance and beautiful surface, it is used as roofing plate, base material for pre-painting plate and kitchenware.

Inquiry

Standard and Steel Grade

Standard

Steel Grade

Thickness (mm)

Width (mm)

Spangle

AZ Coating (g/m2)

Coil Weight (mt)

Treatment

JIS   G3321:1998

SGLCC

SGLCD

0.15-2.0

750-1250

Regular   Minimized

30-180

3-20

C,O,CO,U,AFP

EN 10215-1995

DX51D+AZ   DX52D+AZ S250GD+AZ

S350GD+AZ

S550GD+AZ

0.15-2.0

750-1250

Regular   Minimized

30-180

3-20

C,O,CO,U,AFP

ASTM   A792M-02

CS-B  CS-C    DS  255

550

0.15-2.0

750-1250

Regular   Minimized

30-180

3-20

C,O,CO,U,AFP

AS   1397-2001

G2+AZ

G3+AZ

G250+AZ

G350+AZ

G550+AZ

0.15-2.0

750-1250

Regular   Minimized

30-180

3-20

C,O,CO,U,AFP

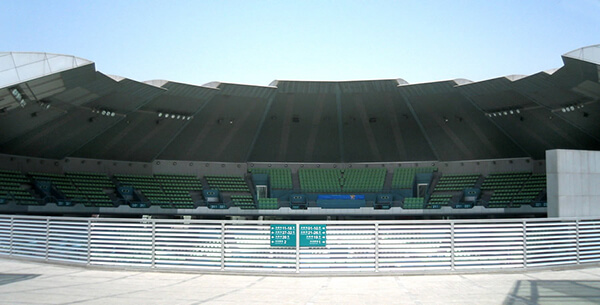

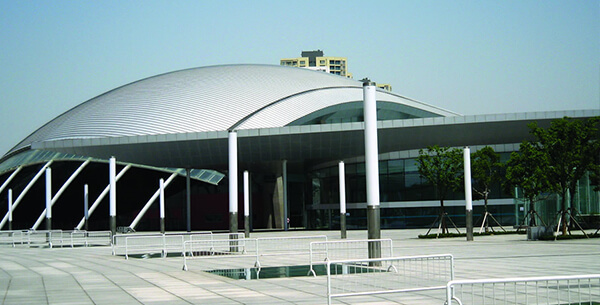

Final Application
