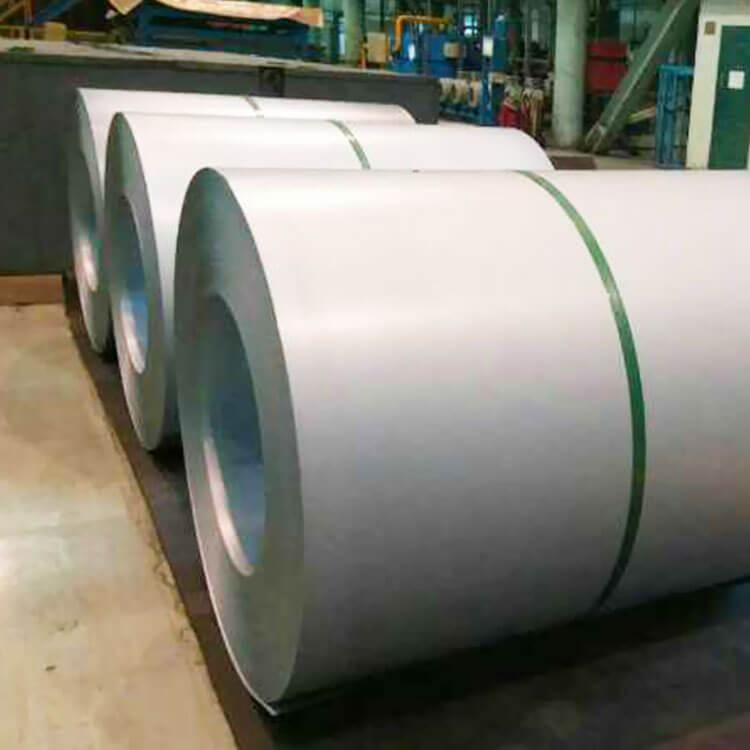

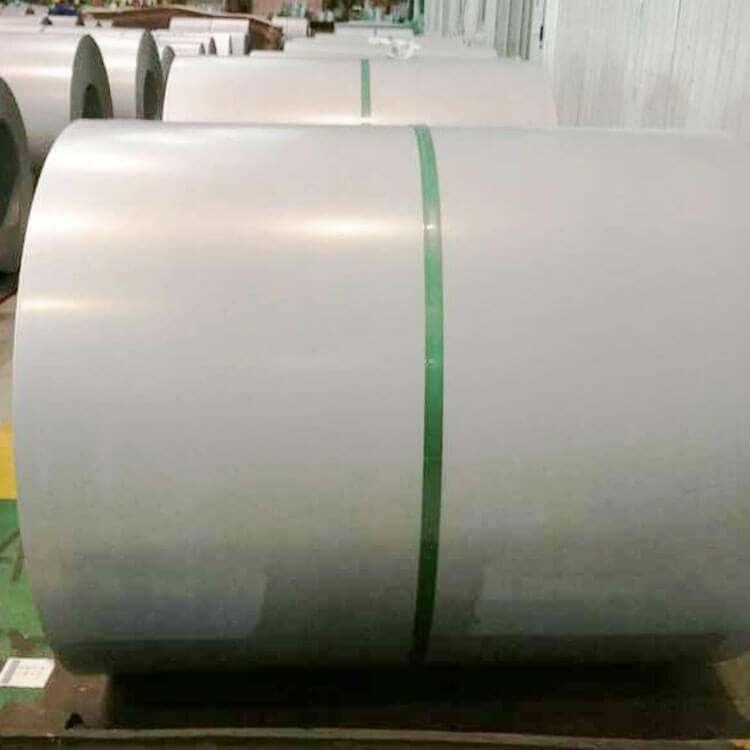

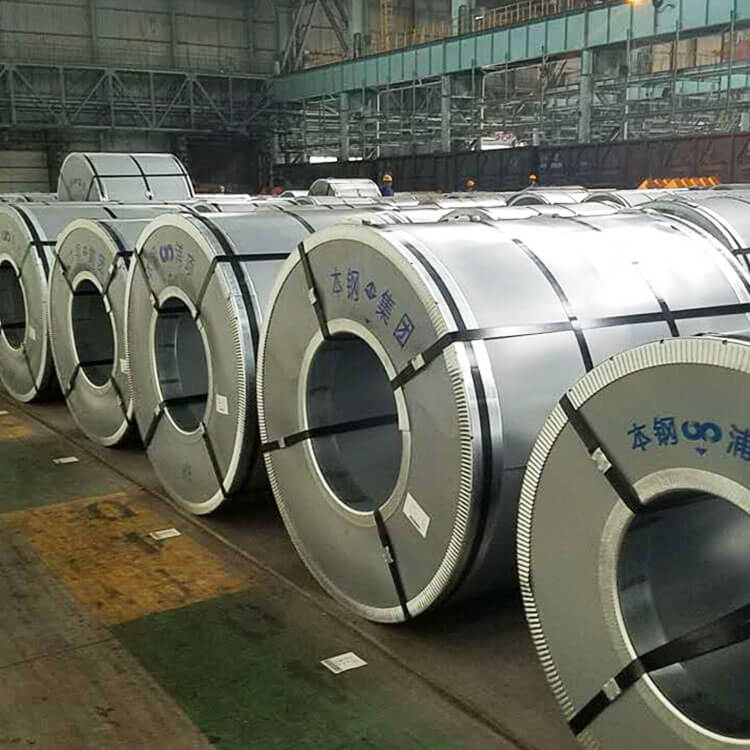

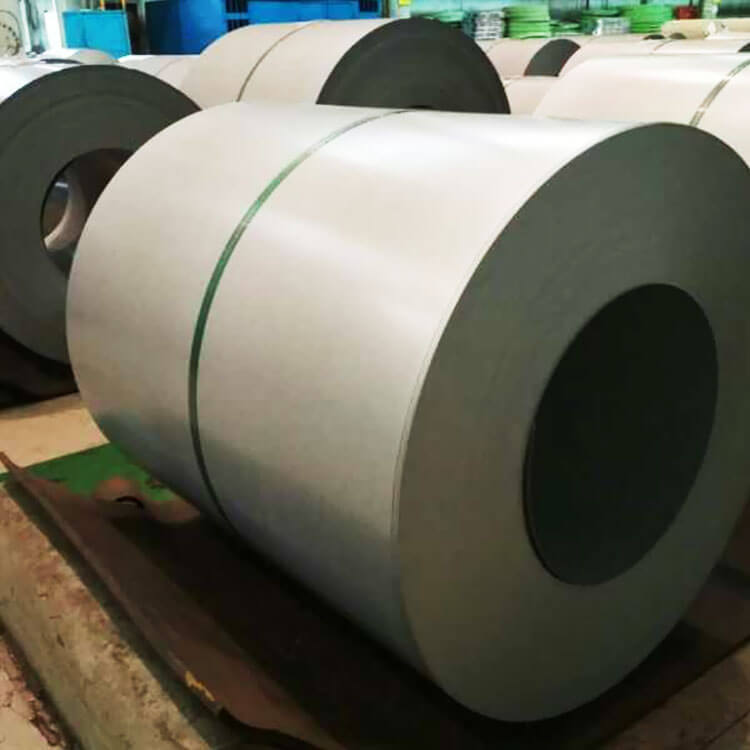

The immersion of iron or steel in an electrolyte, a solution of zinc sulfate or cyanide. Electrolytic action deposits a coating of pure zinc on the surface of the iron or steel. Zinc coating will be pure and dense, thus it has better corrosion resistance to corrosive gas and liquid, and protect base metal in long time. Meanwhile, EGI has better ductility and bendability. They are widely used in machinery manufacture, electronics, home appliance and automobile industry.


Inquiry

Standard and Steel Grade

Standard

Steel  grade

Thickness (mm)

Width (mm)

Zinc Coating Thickness (g/sm)

Coil Weight (mt)

Treatment

JIS   G3313

SECC,   SECD, SECE,SECEN

0.40-2.5

800-1850

Double   side: 20/20-50/50

Single   side: 20-110

Differential   coating in two sides: 40g/sm Max

5-20

Chrome   Free, AFP, P, Oil

EN   10130

DC01E+Z,   DC03E+Z

DC04E+Z,   DC05E+Z, DC06E+Z

0.40-2.5

800-1850

Double   side: 20/20-50/50

Single   side: 20-110

Differential   coating in two sides: 40g/sm Max

5-20

Chrome   Free, AFP, P, Oil

DIN   EN10268

HC380LAE+Z   HC420LAE+Z

0.40-2.5

800-1850

Double   side: 20/20-50/50

Single   side: 20-110

Differential   coating in two sides: 40g/sm Max

5-20

Chrome   Free, AFP, P, Oil


Mechanical performance

Standard

Steel  grade

Mechanical   performance

Y.S.(Mpa)

T.S.(Mpa)

Elongation (%)

JIS G3313

SECC

------

≥270

------

EN 10130

DC01E+Z, DC03E+Z

DC04E+Z, DC06E+Z

170-280

270-410

26-42

DIN EN10268

HC380LAE+Z, HC420LAE+Z

380-520

470-600

17

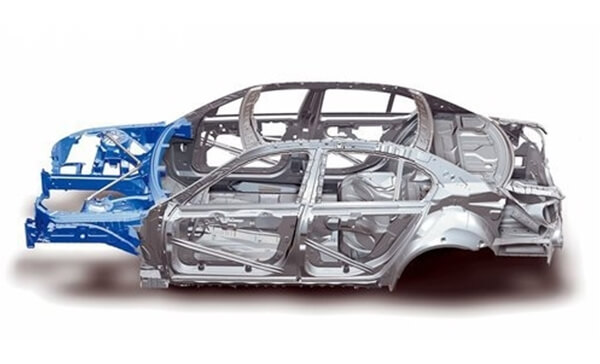

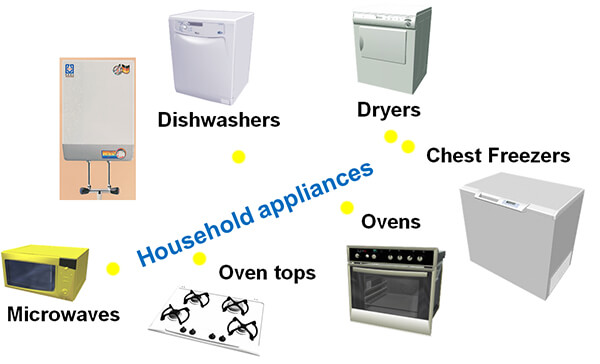

Final Application
